Visualizing spatial data II

Lecture 18

Dr. Benjamin Soltoff

Cornell University
INFO 3312/5312 - Spring 2025

March 27, 2025

Announcements

Homework 05

Visualization critique

Smoking and excessive drinking in the United States

What does the map tell you?
How effective is the bivariate color palette?

Structuring map data in R

Map data file formats

Vector files
- Raster images
- Numeric data
Popular formats
- Shapefile
- GeoJSON

Shapefile

Encodes points, lines, and polygons
Collection of files
- .shp - geographic coordinates
- .dbf - data associated with the geographic features
- .prj - projection of the coordinates in the shapefile

-- geo_export_6fd95df5-1136-4829-8f2d-9cb5d1cc2222.dbf
-- geo_export_6fd95df5-1136-4829-8f2d-9cb5d1cc2222.prj
-- geo_export_6fd95df5-1136-4829-8f2d-9cb5d1cc2222.shp
-- geo_export_6fd95df5-1136-4829-8f2d-9cb5d1cc2222.shx

GeoJSON

Uses JavaScript Object Notation (JSON) file format

{
  "type": "Feature",
  "geometry": {
    "type": "Point",
    "coordinates": [125.6, 10.1]
  },
  "properties": {
    "name": "Dinagat Islands"
  }
}

Plain text files

Simple Features for R

Three cute fuzzy monsters adding spatial geometries to an existing table of attributes using glue and tape, while one cuts out the spatial polygons. Title text reads 'sf: spatial data...simplified.' and a caption at the bottom reads 'sticky geometries: for people who love their maps and sanity.'

What is a feature?

Thing or an object in the real world
Sets of features
Geometry
Attributes

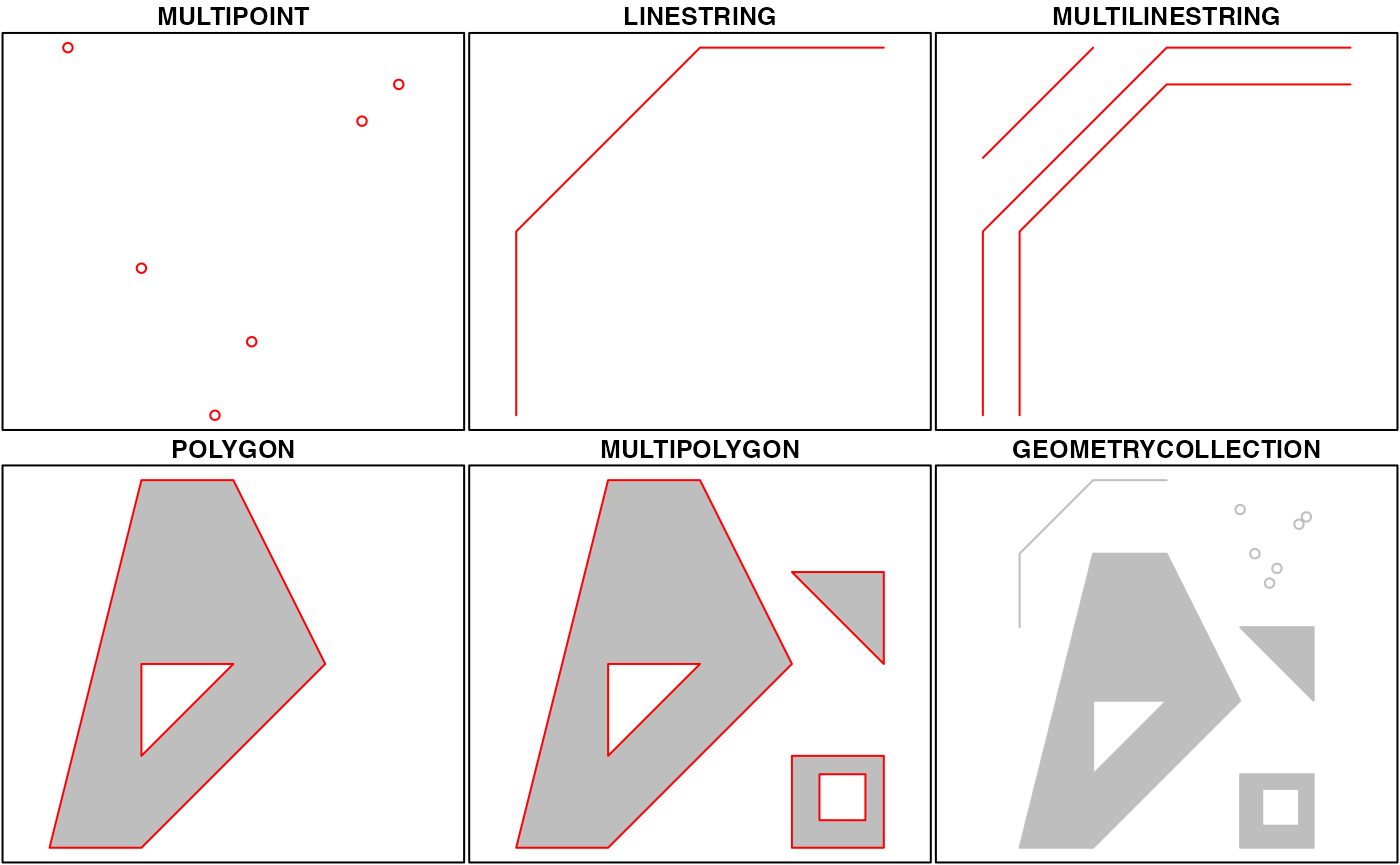

Simple features

Simple features in R

Uses basic R data structures
Data frame with one row per feature
Lots of list columns

Importing shapefiles

nyc_shape <- st_read(dsn = "data/borough-boundaries")

Reading layer `geo_export_6fd95df5-1136-4829-8f2d-9cb5d1cc2222' from data source `/Users/soltoffbc/Projects/info-3312/course-site/slides/data/borough-boundaries'
  using driver `ESRI Shapefile'
Simple feature collection with 5 features and 4 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -74.25559 ymin: 40.49613 xmax: -73.70001 ymax: 40.91553
Geodetic CRS:  WGS84(DD)

nyc_shape

Simple feature collection with 5 features and 4 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -74.25559 ymin: 40.49613 xmax: -73.70001 ymax: 40.91553
Geodetic CRS:  WGS84(DD)
  boro_code     boro_name shape_area shape_leng                       geometry
1         5 Staten Island 1623631283   325924.0 MULTIPOLYGON (((-74.05051 4...
2         2         Bronx 1187189499   463277.2 MULTIPOLYGON (((-73.89681 4...
3         1     Manhattan  636605816   359103.2 MULTIPOLYGON (((-74.01093 4...
4         3      Brooklyn 1934169229   728478.1 MULTIPOLYGON (((-73.86327 4...
5         4        Queens 3041397430   888238.6 MULTIPOLYGON (((-73.82645 4...

Importing GeoJSON files

nyc_json <- st_read(dsn = "data/borough-boundaries.geojson")

Reading layer `borough-boundaries' from data source
  `/Users/soltoffbc/Projects/info-3312/course-site/slides/data/borough-boundaries.geojson'
  using driver `GeoJSON'
Simple feature collection with 5 features and 4 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -74.25559 ymin: 40.49613 xmax: -73.70001 ymax: 40.91553
Geodetic CRS:  WGS 84

nyc_json

Simple feature collection with 5 features and 4 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -74.25559 ymin: 40.49613 xmax: -73.70001 ymax: 40.91553
Geodetic CRS:  WGS 84
  boro_code     boro_name    shape_area    shape_leng
1         5 Staten Island 1623631283.36 325924.002076
2         2         Bronx  1187189499.3 463277.240478
3         1     Manhattan 636605816.437 359103.151368
4         3      Brooklyn 1934169228.83 728478.125489
5         4        Queens 3041397430.33 888238.562635
                        geometry
1 MULTIPOLYGON (((-74.05051 4...
2 MULTIPOLYGON (((-73.89681 4...
3 MULTIPOLYGON (((-74.01093 4...
4 MULTIPOLYGON (((-73.86327 4...
5 MULTIPOLYGON (((-73.82645 4...

Visualizing {sf} objects

Drawing maps with {sf} objects

usa <- states(cb = TRUE)

usa

Simple feature collection with 56 features and 9 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -179.1489 ymin: -14.5487 xmax: 179.7785 ymax: 71.36516
Geodetic CRS:  NAD83
First 10 features:
   STATEFP  STATENS    AFFGEOID GEOID STUSPS           NAME LSAD        ALAND
1       56 01779807 0400000US56    56     WY        Wyoming   00 2.514587e+11
2       02 01785533 0400000US02    02     AK         Alaska   00 1.478943e+12
3       24 01714934 0400000US24    24     MD       Maryland   00 2.515199e+10
4       60 01802701 0400000US60    60     AS American Samoa   00 1.977591e+08
5       05 00068085 0400000US05    05     AR       Arkansas   00 1.346608e+11
6       38 01779797 0400000US38    38     ND   North Dakota   00 1.786943e+11
7       10 01779781 0400000US10    10     DE       Delaware   00 5.046732e+09
8       66 01802705 0400000US66    66     GU           Guam   00 5.435558e+08
9       35 00897535 0400000US35    35     NM     New Mexico   00 3.141986e+11
10      49 01455989 0400000US49    49     UT           Utah   00 2.133551e+11
         AWATER                       geometry
1    1867503716 MULTIPOLYGON (((-111.0546 4...
2  245378425142 MULTIPOLYGON (((179.4825 51...
3    6979074857 MULTIPOLYGON (((-76.05015 3...
4    1307243751 MULTIPOLYGON (((-168.1458 -...
5    3121950081 MULTIPOLYGON (((-94.61792 3...
6    4414779956 MULTIPOLYGON (((-104.0487 4...
7    1399179670 MULTIPOLYGON (((-75.56555 3...
8     934337453 MULTIPOLYGON (((144.6454 13...
9     726482113 MULTIPOLYGON (((-109.0502 3...
10   6529973239 MULTIPOLYGON (((-114.053 37...

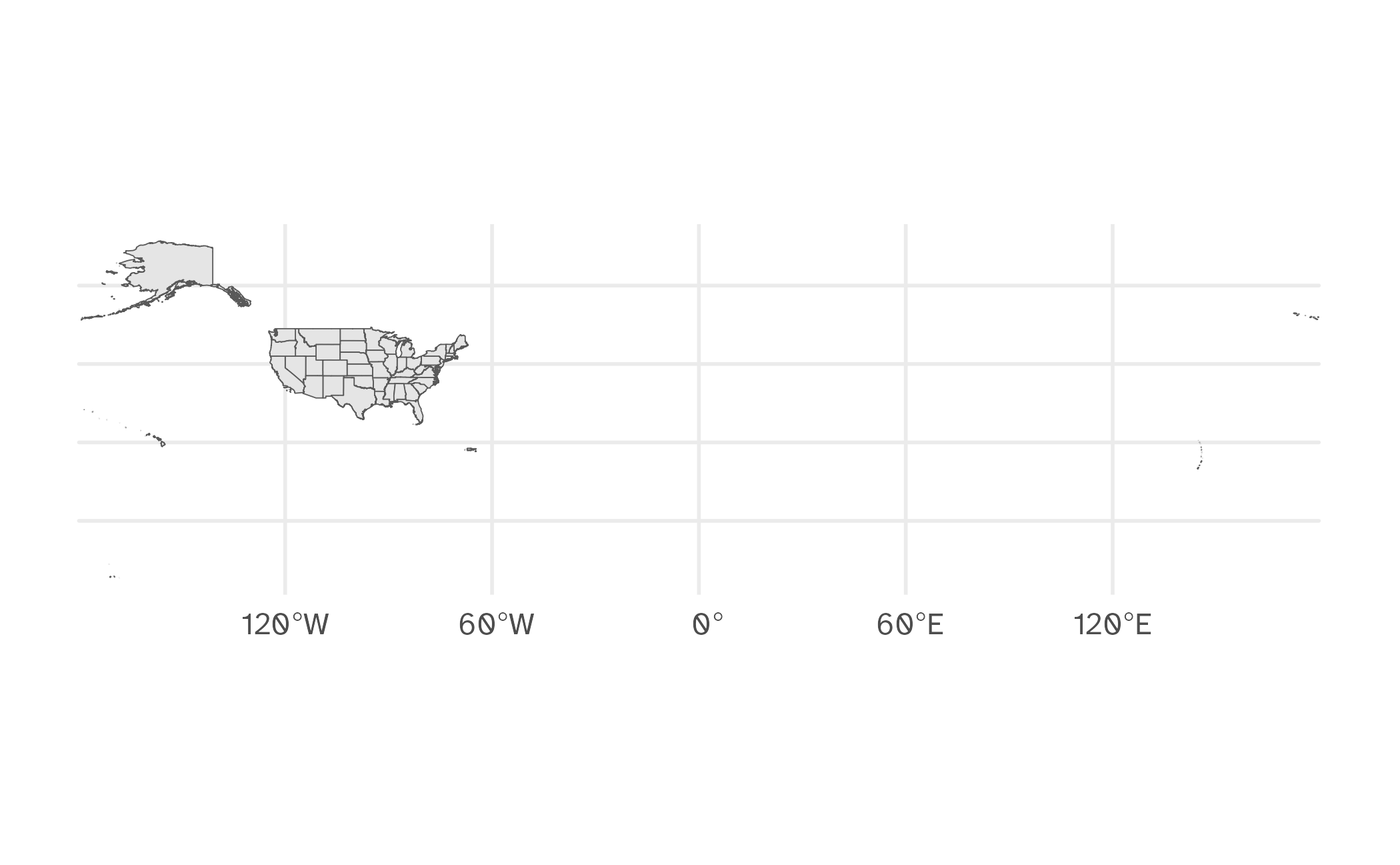

USA boundaries

ggplot(data = usa) +
  geom_sf()

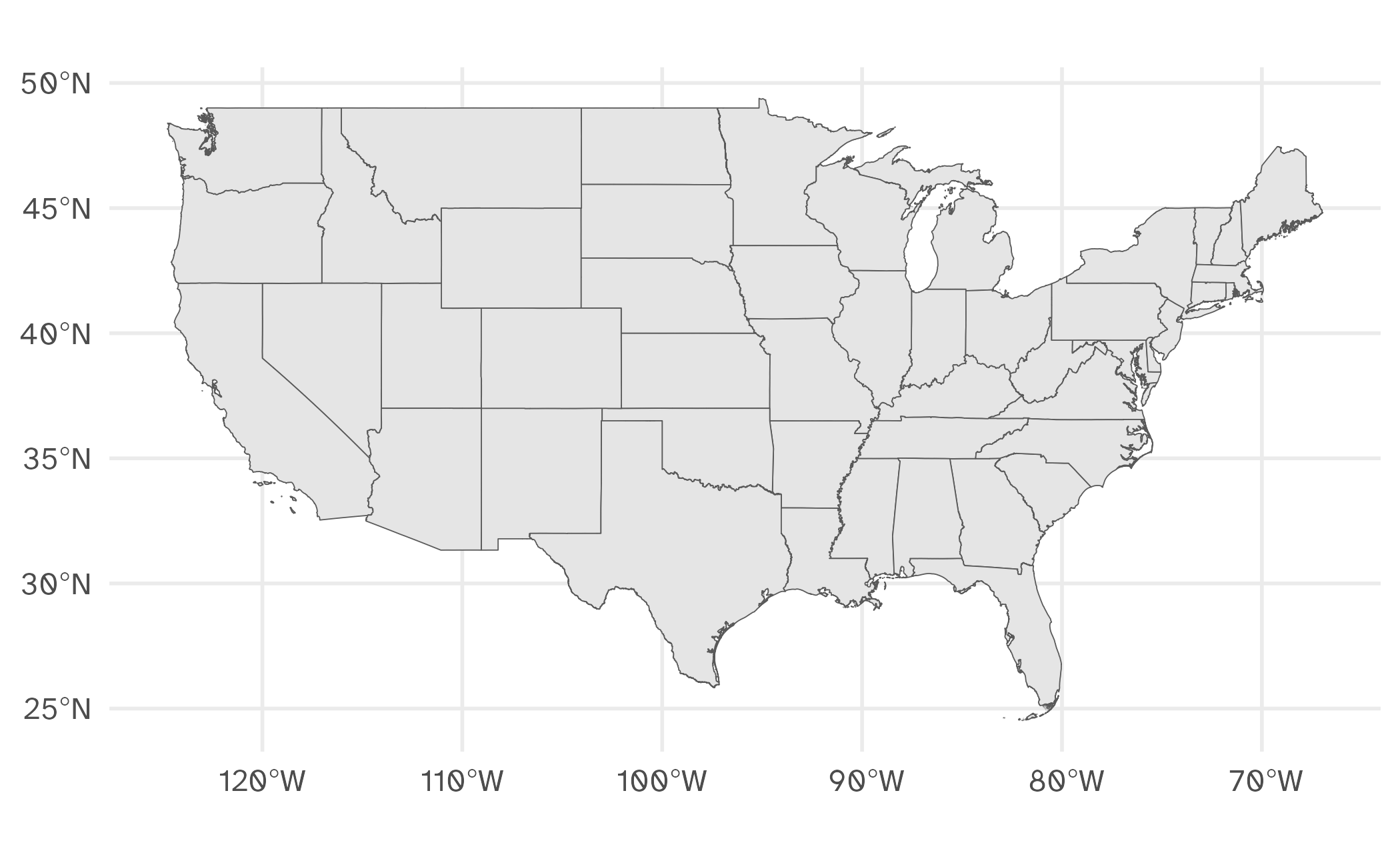

Plot a subset of a map

usa_48 <- usa |>
  filter(NAME %in% state.name) |>
  filter(NAME != "Alaska", NAME != "Hawaii")

ggplot(data = usa_48) +
  geom_sf()

Just another `ggplot()`

ggplot(data = usa_48) +
  geom_sf(
    fill = "palegreen",
    color = "black"
  )

`shift_geometry()`

states_sf <- states(cb = TRUE) |>
  filter(NAME %in% state.name) |>
  shift_geometry()

ggplot(data = states_sf) +
  geom_sf()

Identifying points on a map

Points

crimes <- read_csv(file = "data/nyc-crimes.csv")

crimes_homicide <- filter(.data = crimes, ofns_desc == "MURDER & NON-NEGL. MANSLAUGHTER")
crimes_homicide

# A tibble: 269 × 7
   cmplnt_num    boro_nm   cmplnt_fr_dt        law_cat_cd ofns_desc     latitude
   <chr>         <chr>     <dttm>              <chr>      <chr>            <dbl>
 1 240954923H1   BROOKLYN  1977-12-20 05:00:00 FELONY     MURDER & NON…     40.7
 2 245958045H1   BROOKLYN  2001-08-13 04:00:00 FELONY     MURDER & NON…     40.7
 3 8101169H6113  MANHATTAN 2005-03-06 05:00:00 FELONY     MURDER & NON…     40.8
 4 8101169H6113  MANHATTAN 2005-03-06 05:00:00 FELONY     MURDER & NON…     40.8
 5 16631466H8909 BROOKLYN  2006-05-24 04:00:00 FELONY     MURDER & NON…     40.7
 6 246056367H1   QUEENS    2015-05-13 04:00:00 FELONY     MURDER & NON…     40.6
 7 243507594H1   MANHATTAN 2020-06-19 04:00:00 FELONY     MURDER & NON…     40.8
 8 243688124H1   BROOKLYN  2021-01-31 05:00:00 FELONY     MURDER & NON…     40.7
 9 240767513H1   BROOKLYN  2021-02-17 05:00:00 FELONY     MURDER & NON…     40.6
10 240767512H1   BROOKLYN  2021-05-24 04:00:00 FELONY     MURDER & NON…     40.6
# ℹ 259 more rows
# ℹ 1 more variable: longitude <dbl>

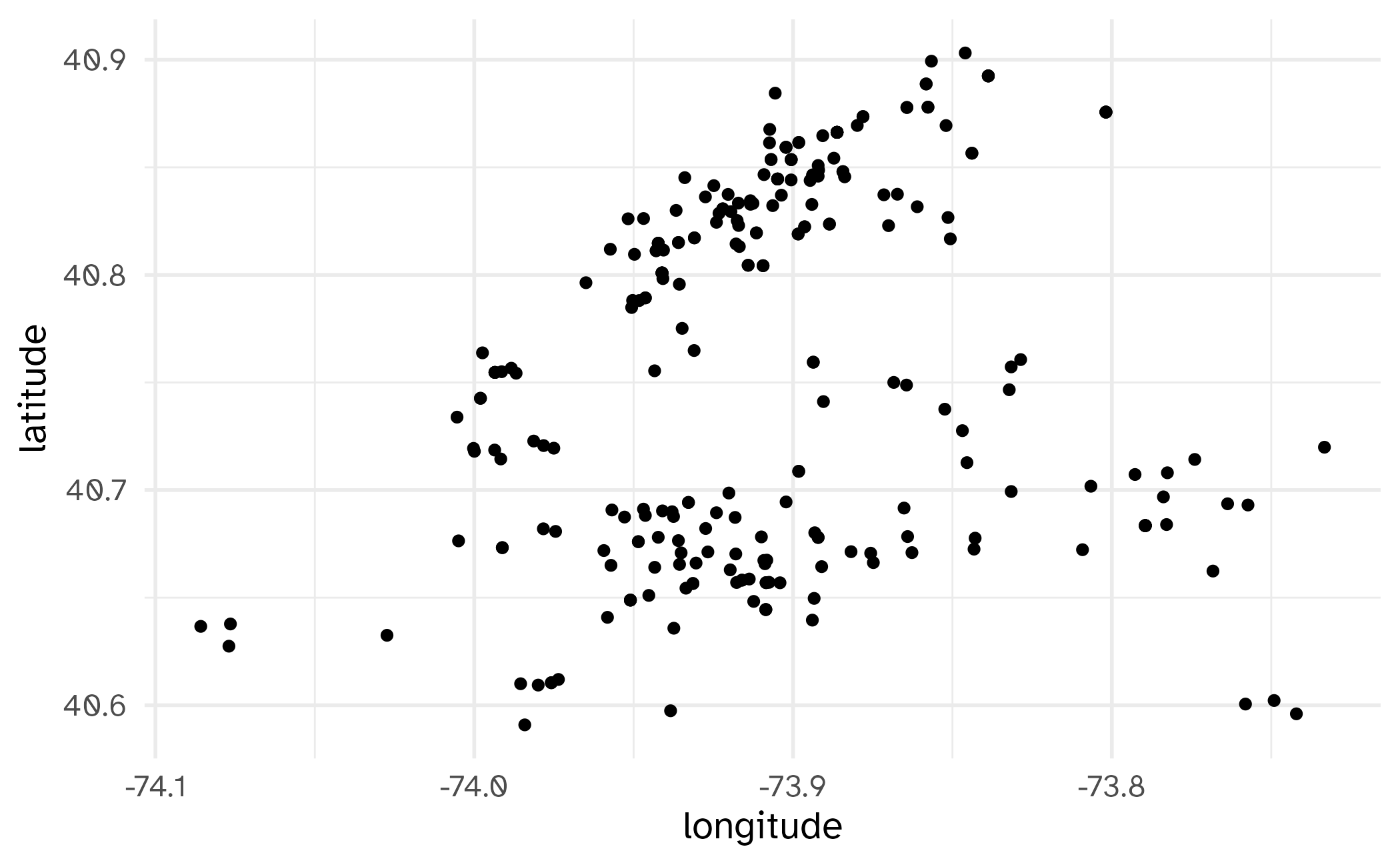

Points

ggplot(
  data = crimes_homicide,
  mapping = aes(
    x = longitude,
    y = latitude
  )
) +
  geom_point()

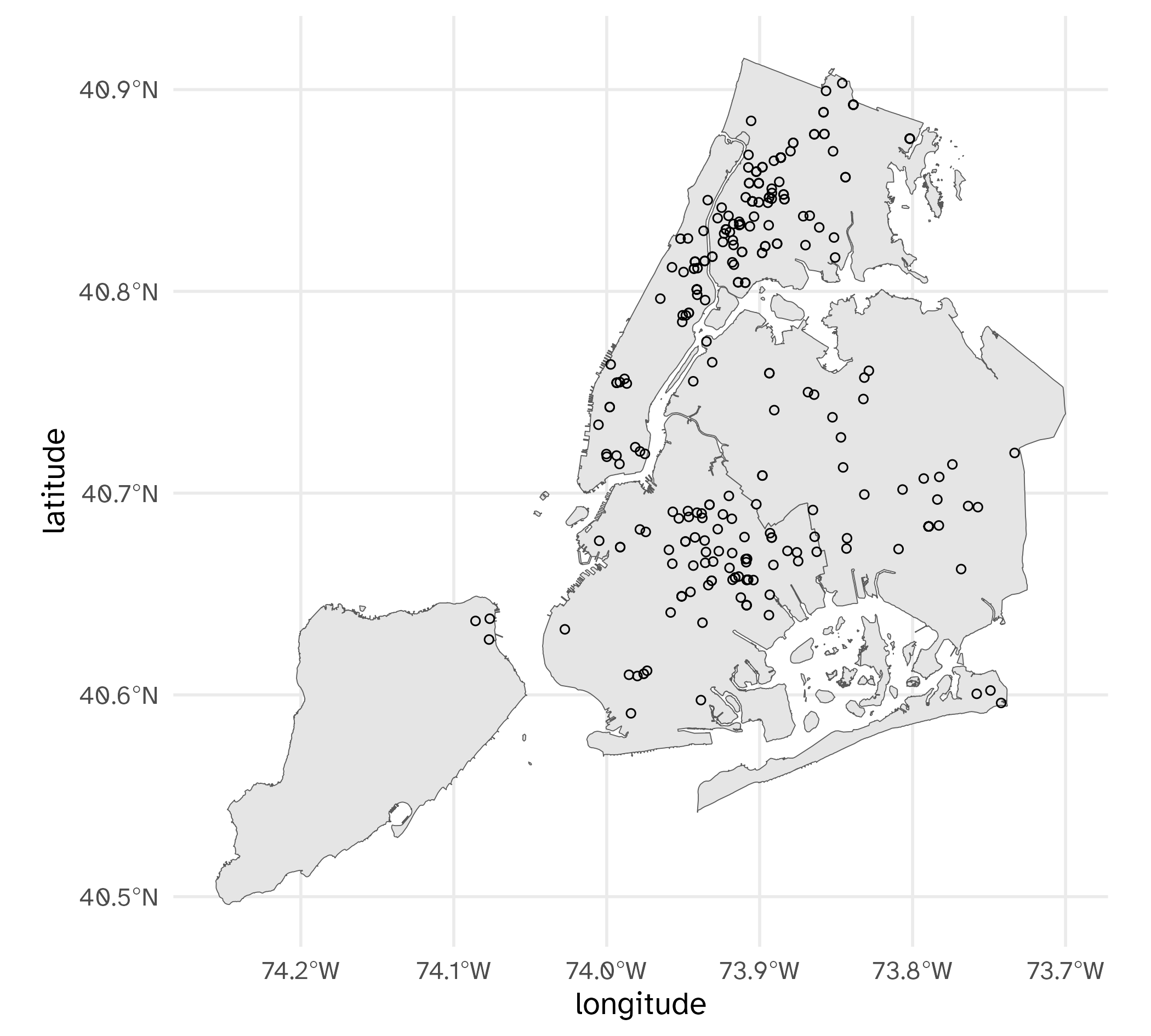

Points

ggplot(data = nyc_json) +
  geom_sf() +
  geom_point(
    data = crimes_homicide,
    mapping = aes(
      x = longitude,
      y = latitude
    ),
    shape = 1
  )

Converting to {sf} data frame

crimes_homicide_sf <- st_as_sf(x = crimes_homicide, coords = c("longitude", "latitude"))
st_crs(crimes_homicide_sf) <- 4326 # set the coordinate reference system
crimes_homicide_sf

Simple feature collection with 269 features and 5 fields
Geometry type: POINT
Dimension:     XY
Bounding box:  xmin: -74.08578 ymin: 40.59087 xmax: -73.73331 ymax: 40.90316
Geodetic CRS:  WGS 84
# A tibble: 269 × 6
   cmplnt_num    boro_nm   cmplnt_fr_dt        law_cat_cd ofns_desc
 * <chr>         <chr>     <dttm>              <chr>      <chr>
 1 240954923H1   BROOKLYN  1977-12-20 05:00:00 FELONY     MURDER & NON-NEGL. MA…
 2 245958045H1   BROOKLYN  2001-08-13 04:00:00 FELONY     MURDER & NON-NEGL. MA…
 3 8101169H6113  MANHATTAN 2005-03-06 05:00:00 FELONY     MURDER & NON-NEGL. MA…
 4 8101169H6113  MANHATTAN 2005-03-06 05:00:00 FELONY     MURDER & NON-NEGL. MA…
 5 16631466H8909 BROOKLYN  2006-05-24 04:00:00 FELONY     MURDER & NON-NEGL. MA…
 6 246056367H1   QUEENS    2015-05-13 04:00:00 FELONY     MURDER & NON-NEGL. MA…
 7 243507594H1   MANHATTAN 2020-06-19 04:00:00 FELONY     MURDER & NON-NEGL. MA…
 8 243688124H1   BROOKLYN  2021-01-31 05:00:00 FELONY     MURDER & NON-NEGL. MA…
 9 240767513H1   BROOKLYN  2021-02-17 05:00:00 FELONY     MURDER & NON-NEGL. MA…
10 240767512H1   BROOKLYN  2021-05-24 04:00:00 FELONY     MURDER & NON-NEGL. MA…
# ℹ 259 more rows
# ℹ 1 more variable: geometry <POINT [°]>

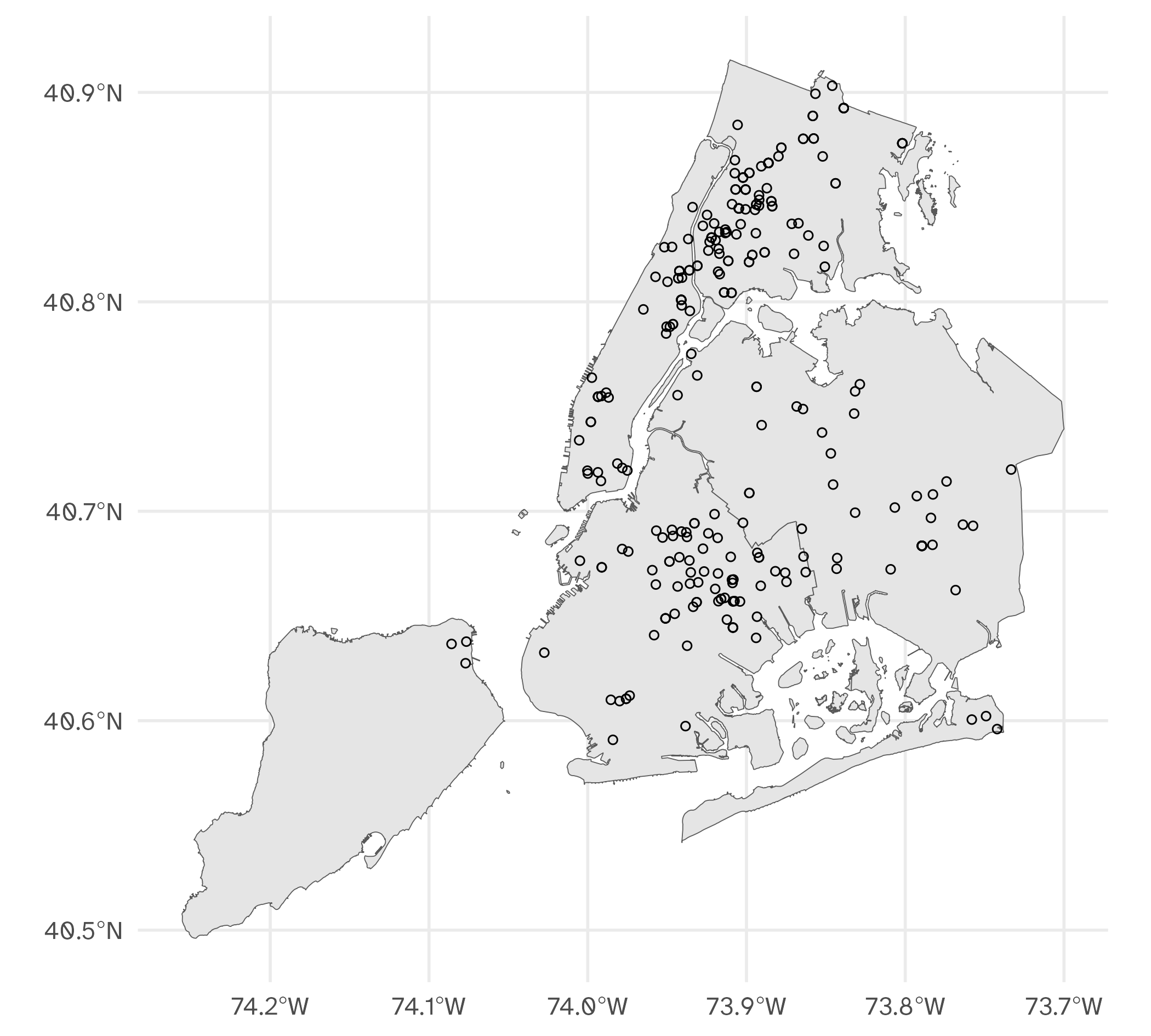

Plotting with two sf data frames

ggplot() +
  geom_sf(data = nyc_json) +
  geom_sf(
    data = crimes_homicide_sf,
    shape = 1
  )

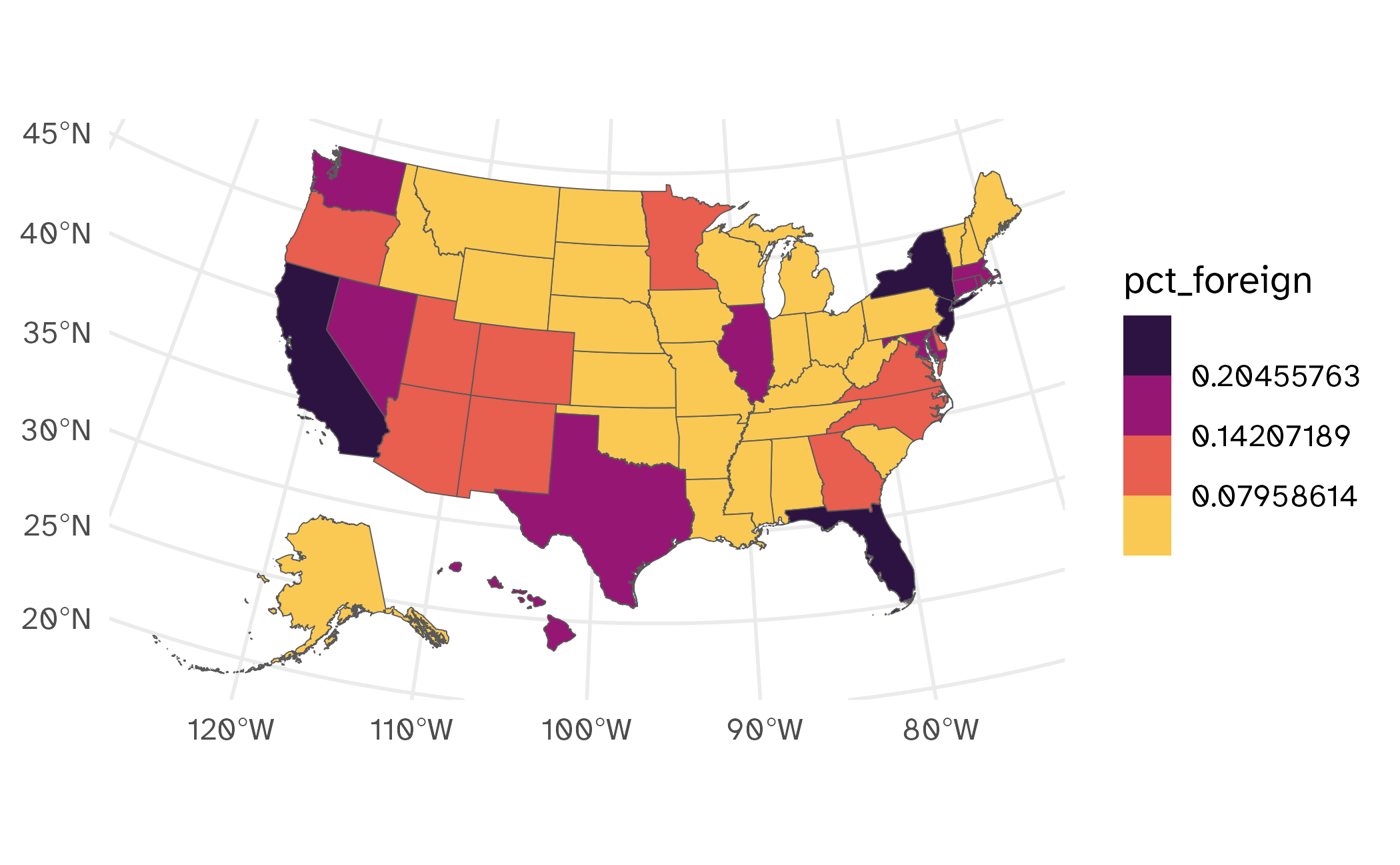

Choropleths

Fill (choropleths)

usa_fb <- get_acs(
  geography = "state",
  variables = c(total = "B05002_001E", native = "B05002_002E",
                foreign = "B05002_013E"),
  year = 2023,
  output = "wide",
  geometry = TRUE
) |>
  select(GEOID, NAME, total, native, foreign) |>
  mutate(pct_foreign = foreign / total) |>
  filter(NAME %in% state.name) |>
  shift_geometry()

usa_fb

Simple feature collection with 50 features and 6 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -3111747 ymin: -1697746 xmax: 2258200 ymax: 1565782
Projected CRS: USA_Contiguous_Albers_Equal_Area_Conic
First 10 features:
   GEOID         NAME    total   native  foreign pct_foreign
1     35   New Mexico  2114768  1919284   195484  0.09243756
2     46 South Dakota   899194   863976    35218  0.03916619
3     06   California 39242785 28763259 10479526  0.26704338
4     21     Kentucky  4510725  4311120   199605  0.04425120
5     01      Alabama  5054253  4862214   192039  0.03799553
6     13      Georgia 10822590  9650102  1172488  0.10833710
7     05     Arkansas  3032651  2874432   158219  0.05217185
8     42 Pennsylvania 12986518 12025271   961247  0.07401884
9     29     Missouri  6168181  5898279   269902  0.04375715
10    08     Colorado  5810774  5254183   556591  0.09578603
                         geometry
1  MULTIPOLYGON (((-1231344 -5...
2  MULTIPOLYGON (((-633765.6 8...
3  MULTIPOLYGON (((-2066923 -2...
4  MULTIPOLYGON (((584560 -886...
5  MULTIPOLYGON (((760323.7 -7...
6  MULTIPOLYGON (((1390722 -58...
7  MULTIPOLYGON (((122656.3 -1...
8  MULTIPOLYGON (((1287712 486...
9  MULTIPOLYGON (((19008.51 34...
10 MULTIPOLYGON (((-1123223 20...

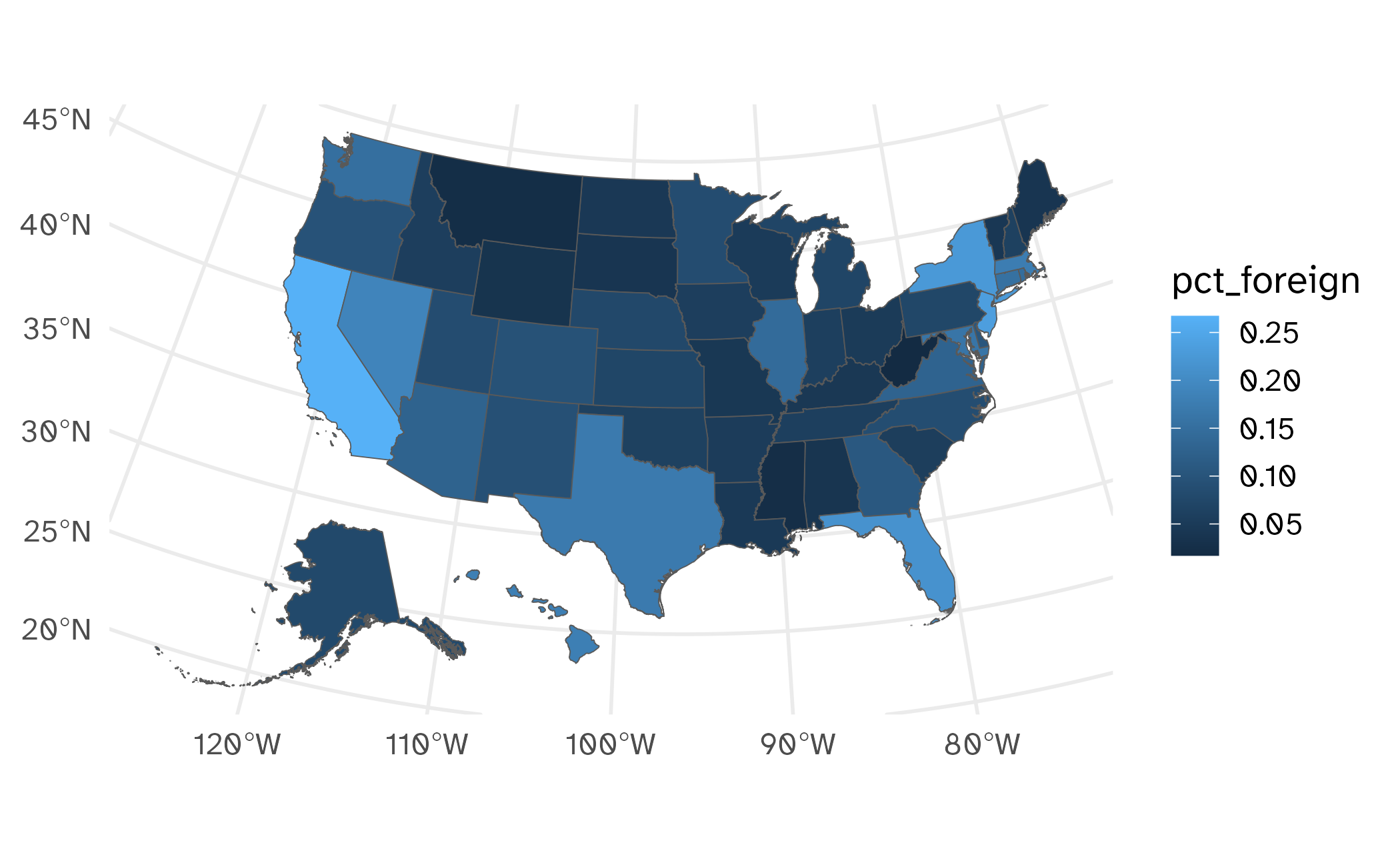

Draw the map

ggplot(data = usa_fb) +
  geom_sf(mapping = aes(fill = pct_foreign))

Use better colors

library(colorspace)

ggplot(data = usa_fb) +
  geom_sf(mapping = aes(
    fill = pct_foreign
  )) +
  scale_fill_continuous_sequential(palette = "mako")

Spatial aggregation

nyc_json |>
  st_join(y = crimes_homicide_sf)

Simple feature collection with 269 features and 9 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -74.25559 ymin: 40.49613 xmax: -73.70001 ymax: 40.91553
Geodetic CRS:  WGS 84
First 10 features:
    boro_code     boro_name    shape_area    shape_leng  cmplnt_num
1           5 Staten Island 1623631283.36 325924.002076 239347883H1
1.1         5 Staten Island 1623631283.36 325924.002076 244818447H1
1.2         5 Staten Island 1623631283.36 325924.002076 246985876H1
2           2         Bronx  1187189499.3 463277.240478 242029394H1
2.1         2         Bronx  1187189499.3 463277.240478 242029394H1
2.2         2         Bronx  1187189499.3 463277.240478 243573864H1
2.3         2         Bronx  1187189499.3 463277.240478 244256173H1
2.4         2         Bronx  1187189499.3 463277.240478 240776535H1
2.5         2         Bronx  1187189499.3 463277.240478 240776535H1
2.6         2         Bronx  1187189499.3 463277.240478 240776535H1
          boro_nm        cmplnt_fr_dt law_cat_cd
1   STATEN ISLAND 2022-01-18 05:00:00     FELONY
1.1 STATEN ISLAND 2022-05-09 04:00:00     FELONY
1.2 STATEN ISLAND 2022-06-21 04:00:00     FELONY
2           BRONX 2021-06-01 04:00:00     FELONY
2.1         BRONX 2021-06-01 04:00:00     FELONY
2.2         BRONX 2021-10-24 04:00:00     FELONY
2.3         BRONX 2021-12-17 05:00:00     FELONY
2.4         BRONX 2022-01-01 05:00:00     FELONY
2.5         BRONX 2022-01-01 05:00:00     FELONY
2.6         BRONX 2022-01-01 05:00:00     FELONY
                          ofns_desc                       geometry
1   MURDER & NON-NEGL. MANSLAUGHTER MULTIPOLYGON (((-74.05051 4...
1.1 MURDER & NON-NEGL. MANSLAUGHTER MULTIPOLYGON (((-74.05051 4...
1.2 MURDER & NON-NEGL. MANSLAUGHTER MULTIPOLYGON (((-74.05051 4...
2   MURDER & NON-NEGL. MANSLAUGHTER MULTIPOLYGON (((-73.89681 4...
2.1 MURDER & NON-NEGL. MANSLAUGHTER MULTIPOLYGON (((-73.89681 4...
2.2 MURDER & NON-NEGL. MANSLAUGHTER MULTIPOLYGON (((-73.89681 4...
2.3 MURDER & NON-NEGL. MANSLAUGHTER MULTIPOLYGON (((-73.89681 4...
2.4 MURDER & NON-NEGL. MANSLAUGHTER MULTIPOLYGON (((-73.89681 4...
2.5 MURDER & NON-NEGL. MANSLAUGHTER MULTIPOLYGON (((-73.89681 4...
2.6 MURDER & NON-NEGL. MANSLAUGHTER MULTIPOLYGON (((-73.89681 4...

Spatial aggregation

nyc_json |>
  st_join(y = crimes_homicide_sf) |>
  count(boro_name)

Simple feature collection with 5 features and 2 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -74.25559 ymin: 40.49613 xmax: -73.70001 ymax: 40.91553
Geodetic CRS:  WGS 84
      boro_name   n                       geometry
1         Bronx 101 MULTIPOLYGON (((-73.89679 4...
2      Brooklyn  75 MULTIPOLYGON (((-73.86318 4...
3     Manhattan  46 MULTIPOLYGON (((-74.0086 40...
4        Queens  44 MULTIPOLYGON (((-73.82646 4...
5 Staten Island   3 MULTIPOLYGON (((-74.05054 4...

Spatial aggregation

nyc_json |>
  st_join(y = crimes_homicide_sf) |>
  count(boro_name) |>
  ggplot() +
  geom_sf(mapping = aes(fill = n))

Which is better for comparisons?

Application exercise

`ae-17`

Instructions

Go to the course GitHub org and find your ae-17 (repo name will be suffixed with your GitHub name).
Clone the repo in RStudio, run renv::restore() to install the required packages, open the Quarto document in the repo, and follow along and complete the exercises.
Render, commit, and push your edits by the AE deadline – end of the day

Bin continuous data to discrete intervals

Bin data to discrete intervals

Continuous vs. discrete variables for color
Collapse to a discrete variable

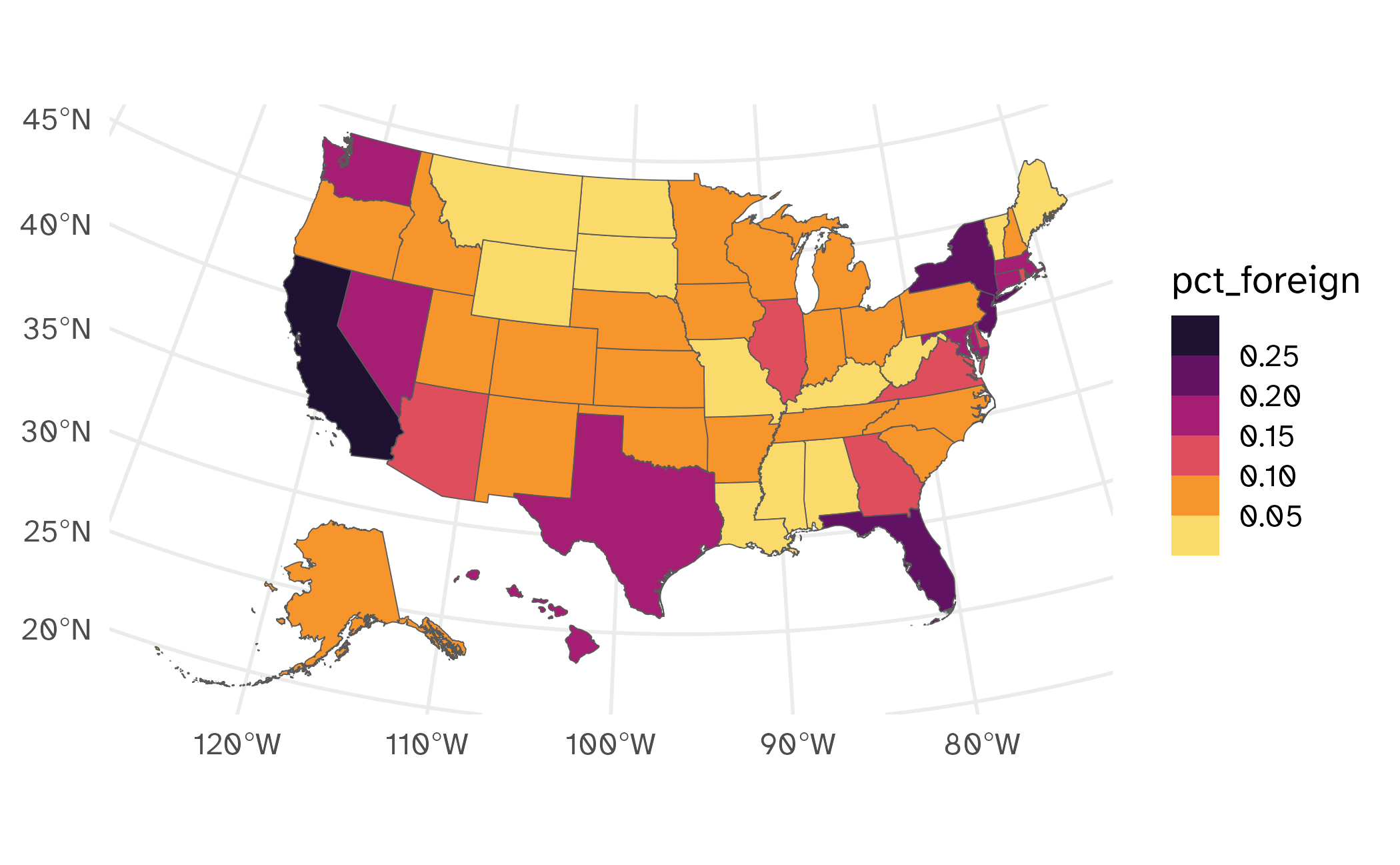

`ggplot2::binned_scale()`

usa_fb |>
  ggplot() +
  geom_sf(aes(fill = pct_foreign)) +
  scale_fill_binned_sequential(palette = "inferno")

`ggplot2::binned_scale()` with quartiles

usa_fb |>
  ggplot() +
  geom_sf(aes(fill = pct_foreign)) +
  scale_fill_binned_sequential(
    palette = "inferno",
    n.breaks = 3
  )

`ggplot2::binned_scale()` with quartiles

usa_fb |>
  ggplot() +
  geom_sf(aes(fill = pct_foreign)) +
  scale_fill_binned_sequential(
    palette = "inferno",
    n.breaks = 3,
    nice.breaks = FALSE
  )

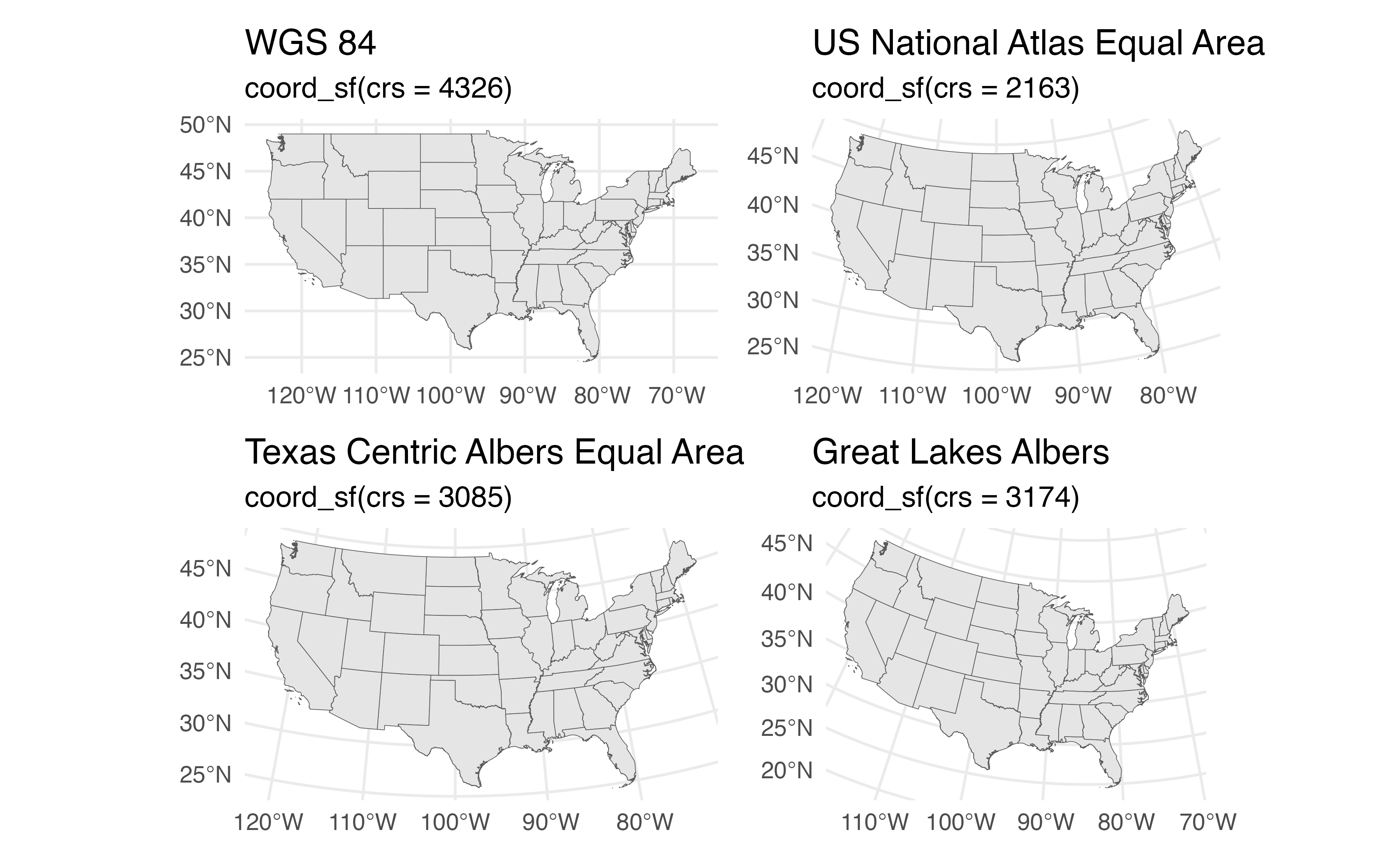

Map projection

Map projection

Coordinate reference system
proj4string
Well Known Text 2 (WKT2) string

https://spatialreference.org/ref/epsg/

US National Atlas Equal Area

proj4string

+proj=laea +lat_0=45 +lon_0=-100 +x_0=0 +y_0=0 +a=6370997 +b=6370997 +units=m +no_defs

WKT2

PROJCS["US National Atlas Equal Area",
    GEOGCS["Unspecified datum based upon the Clarke 1866 Authalic Sphere",
        DATUM["Not_specified_based_on_Clarke_1866_Authalic_Sphere",
            SPHEROID["Clarke 1866 Authalic Sphere",6370997,0,
                AUTHORITY["EPSG","7052"]],
            AUTHORITY["EPSG","6052"]],
        PRIMEM["Greenwich",0,
            AUTHORITY["EPSG","8901"]],
        UNIT["degree",0.01745329251994328,
            AUTHORITY["EPSG","9122"]],
        AUTHORITY["EPSG","4052"]],
    UNIT["metre",1,
        AUTHORITY["EPSG","9001"]],
    PROJECTION["Lambert_Azimuthal_Equal_Area"],
    PARAMETER["latitude_of_center",45],
    PARAMETER["longitude_of_center",-100],
    PARAMETER["false_easting",0],
    PARAMETER["false_northing",0],
    AUTHORITY["EPSG","2163"],
    AXIS["X",EAST],
    AXIS["Y",NORTH]]

EPSG

Coordinated registry of CRSs
Spatial Reference
epsg.io

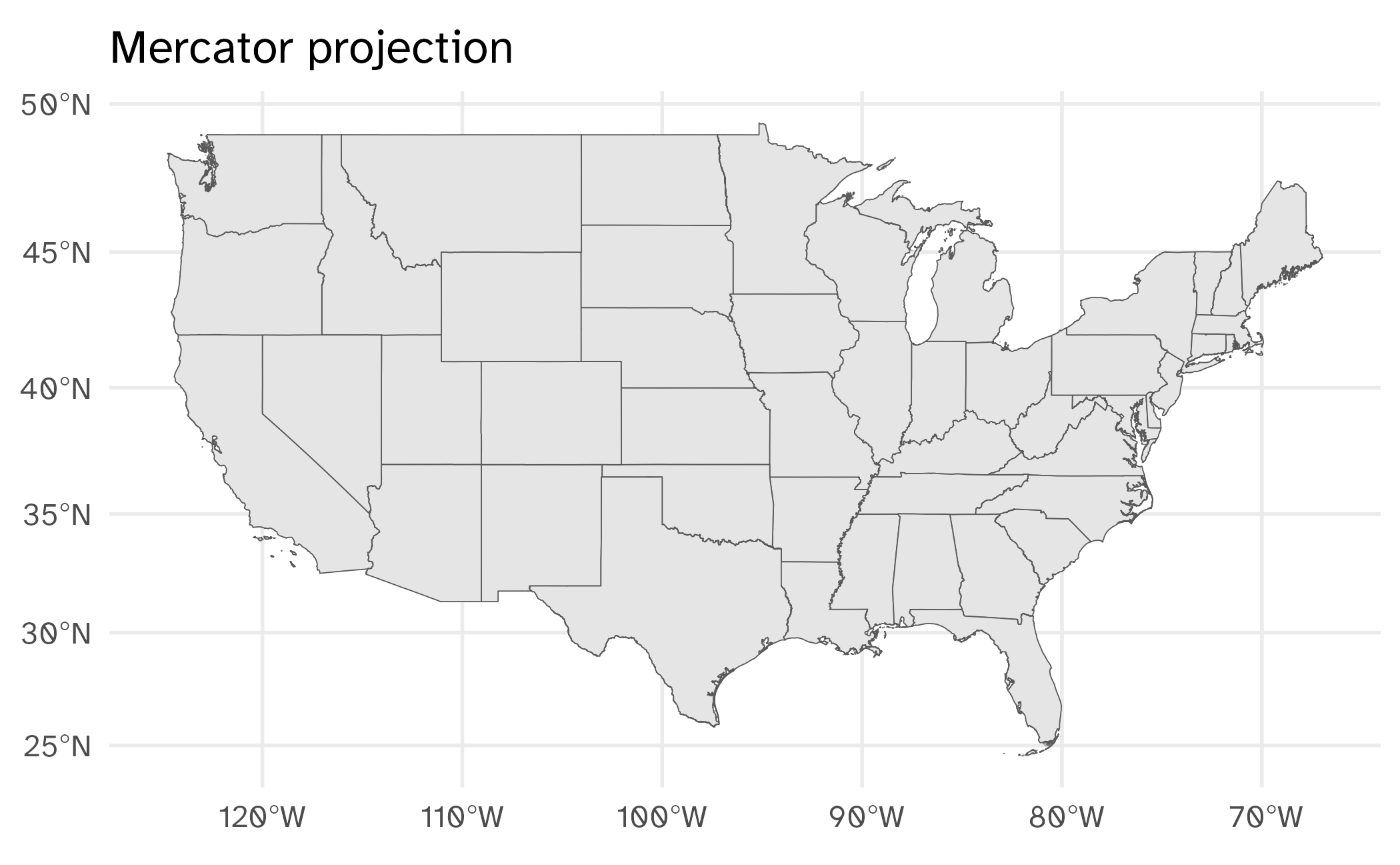

Mercator projection

Projection using standard lines

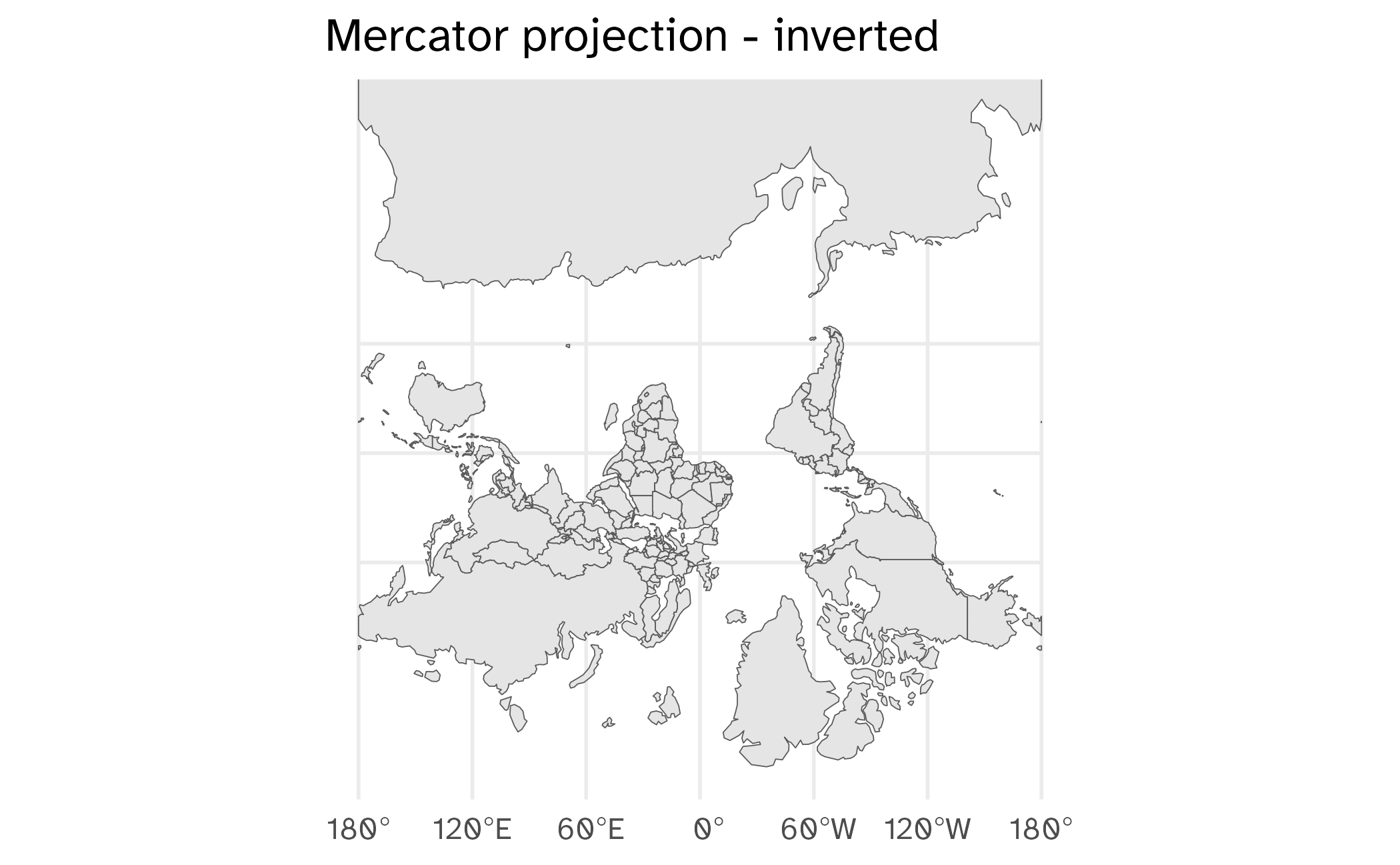

South on the top

Application exercise

ae-17

Work through part 2

Modify the map to use a binned color scale
Implement a projection method appropriate for the state of New York

Wrap-up

Recap

Structure geographic features using vector data and simple features
Use geom_sf() to visualize simple features data in {ggplot2}
Consider spatially aggregating your observations for more effective communication
Deliberately select color palettes and projection methods

How to make the bivariate color palette

# import health data
# source: https://chronicdata.cdc.gov/500-Cities-Places/PLACES-County-Data-GIS-Friendly-Format-2024-releas/i46a-9kgh/about_data
county_health <- read_csv(file = "data/PLACES__County_Data__GIS_Friendly_Format___2024_release_20250326.csv") |>
  select(GEOID = CountyFIPS, drinking = BINGE_AdjPrev, smoking = CSMOKING_AdjPrev)

# get county/state boundaries
county_sf <- counties(cb = TRUE) |>
  # only keep counties in US states
  semi_join(
    y = fips_codes |>
      filter(state_name %in% state.name),
    by = join_by(
      STATEFP == state_code,
      COUNTYFP == county_code
    )
  ) |>
  # shift Alaska and Hawaii
  shift_geometry()

state_sf <- states(cb = TRUE) |>
  filter(NAME %in% state.name) |>
  # shift Alaska and Hawaii
  shift_geometry()

How to make the bivariate color palette

# create map
smoke_drink_map <- left_join(x = county_sf, y = county_health) |>
  # use biscales to create bivariate color palette
  bi_class(
    x = smoking,
    y = drinking,
    style = "quantile"
  ) |>
  # draw map
  ggplot() +
  geom_sf(mapping = aes(fill = bi_class), linewidth = 0.1) +
  # overlay state boundaries for context
  geom_sf(data = state_sf, fill = NA, color = "white") +
  # use biscale color palette
  bi_scale_fill(pal = "PinkGrn", guide = "none") +
  # appropriate labels and theme
  labs(
    title = "Smoking and excessive drinking in the United States",
    caption = "Source: Behavioral Risk Factor Surveillance System (2022)"
  ) +
  theme_map(base_family = "Atkinson Hyperlegible", base_size = 14)

# create legend
smoke_drink_legend <- bi_legend(
  pal = "PinkGrn",
  dim = 3,
  xlab = "Higher % Smokers",
  ylab = "Higher % Binge Drinkers",
  size = 9,
  pad_width = 1.5, pad_color = "white",
  rotate_pal = FALSE,
  base_family = "Atkinson Hyperlegible"
) +
  # fix justification of text labels
  theme(
    axis.title.x = element_text(hjust = 0),
    axis.title.y = element_text(hjust = 0)
  )

# combine map + legend with patchwork
smoke_drink_map +
  inset_element(smoke_drink_legend,
    left = 0, bottom = 0.3, right = 0.20, top = 0.575
  )

Visualizing spatial data II

Announcements

Announcements

Visualization critique

Smoking and excessive drinking in the United States

Structuring map data in R

Map data file formats

Shapefile

GeoJSON

Simple Features for R

What is a feature?

Simple features

Simple features in R

Importing shapefiles

Importing GeoJSON files

Visualizing {sf} objects

Drawing maps with {sf} objects

USA boundaries

Plot a subset of a map

Just another ggplot()

shift_geometry()

Identifying points on a map

Points

Points

Points

Converting to {sf} data frame

Plotting with two sf data frames

Choropleths

Fill (choropleths)

Draw the map

Use better colors

Spatial aggregation

Spatial aggregation

Spatial aggregation

Spatial aggregation

Which is better for comparisons?

Application exercise

ae-17

Bin continuous data to discrete intervals

Bin data to discrete intervals

ggplot2::binned_scale()

ggplot2::binned_scale() with quartiles

ggplot2::binned_scale() with quartiles

Map projection

Map projection

Map projection

Map projection

US National Atlas Equal Area

proj4string

WKT2

EPSG

Mercator projection

Projection using standard lines

South on the top

Application exercise

ae-17

Wrap-up

Recap

How to make the bivariate color palette

How to make the bivariate color palette

The final first lost tooth

Just another `ggplot()`

`shift_geometry()`

`ae-17`

`ggplot2::binned_scale()`

`ggplot2::binned_scale()` with quartiles

`ggplot2::binned_scale()` with quartiles
